MMT Defense started to operate in 2024 with the aim of presenting the knowledge gained in the field of national security since 1990, including the close follow-up and personal application of technologies, especially in the fields of ammunition and small arms, on domestic and foreign trade platforms.
MMT Defense, which has close contacts with international defense industry companies on developing ammunition and small arms technologies, is rapidly strengthening in the sector with its expertise and experience sharing, and is taking firm steps forward by establishing traceable dialogues with its customers / stakeholders.

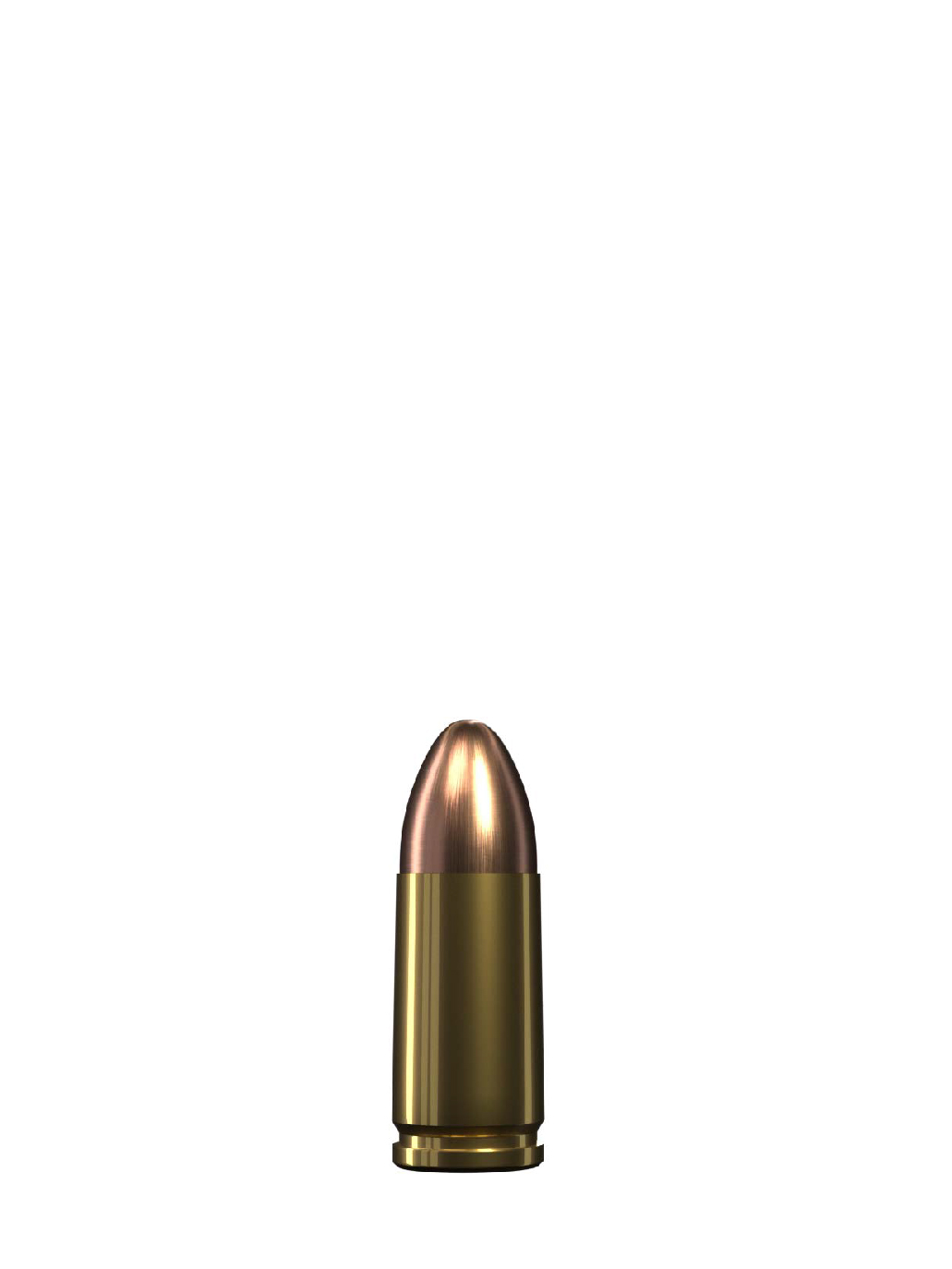

FMJ 124 gr (8 g), FMJ 115 gr (7,45 g), FMJ 147 gr (9,5 g) IPSC

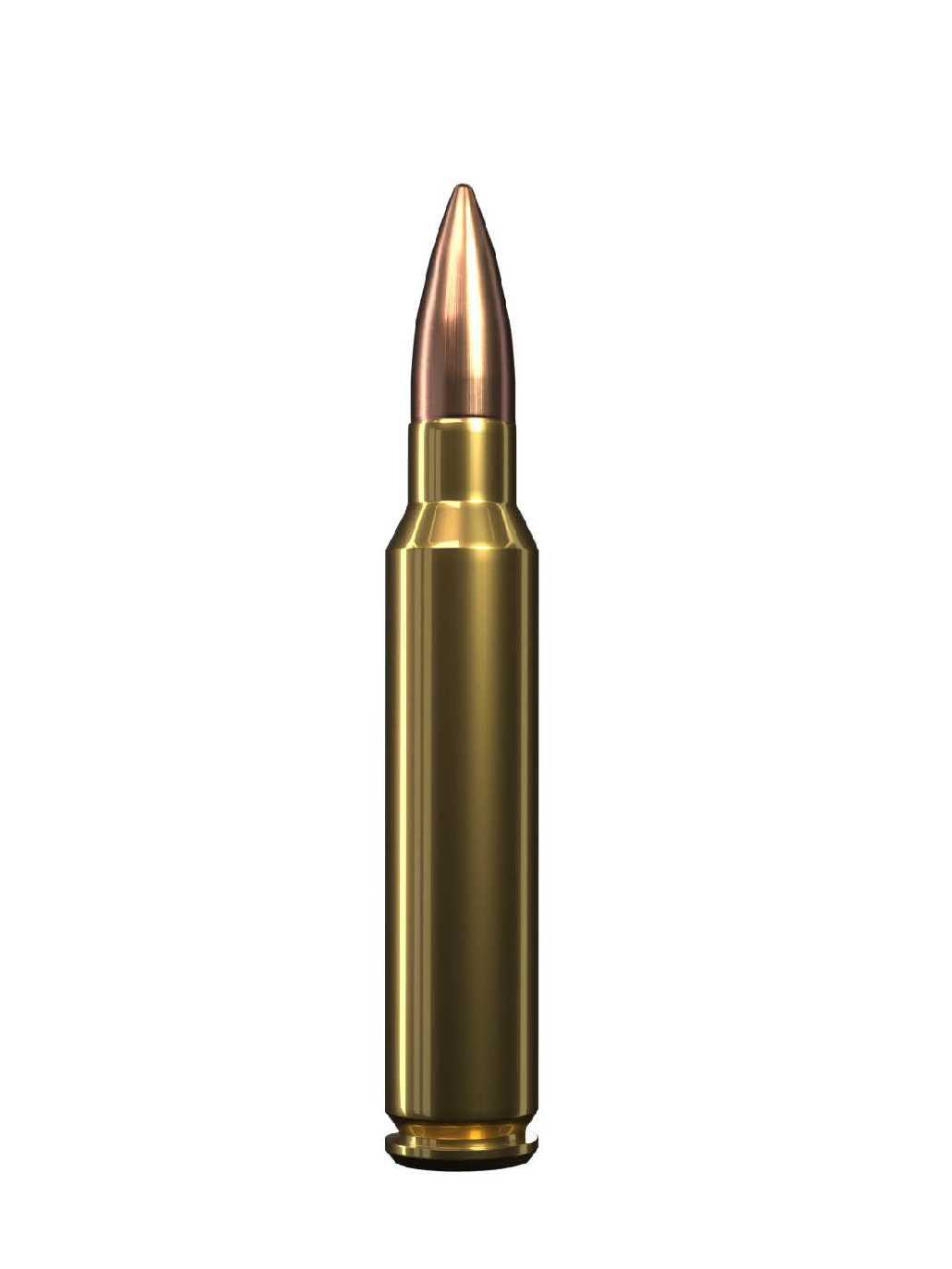

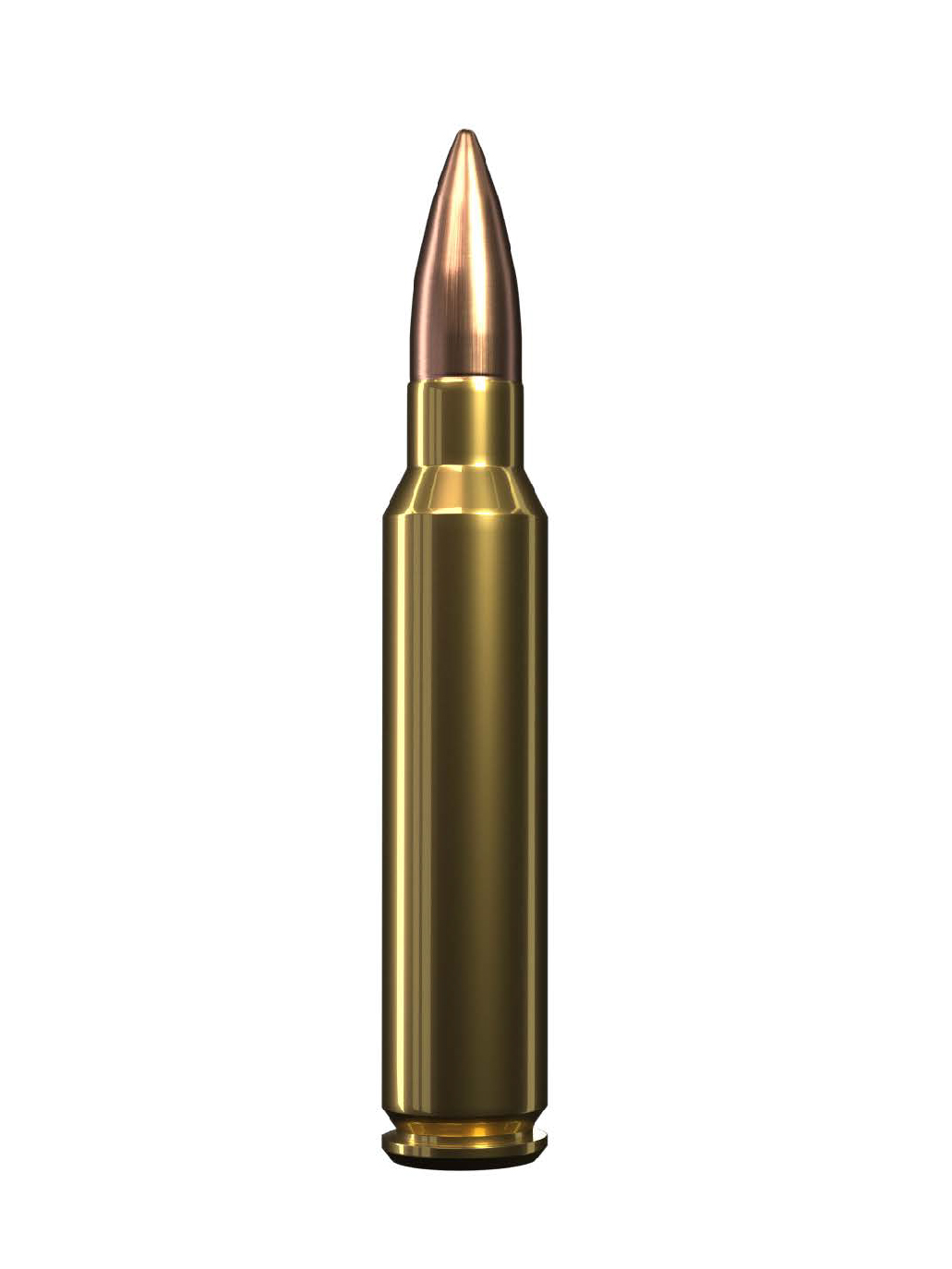

M193 Ball, M196 Tracer, M855/SS109, M856 Tracer
HP (High Pressure) bullet weight 5,5 g (85 gr)

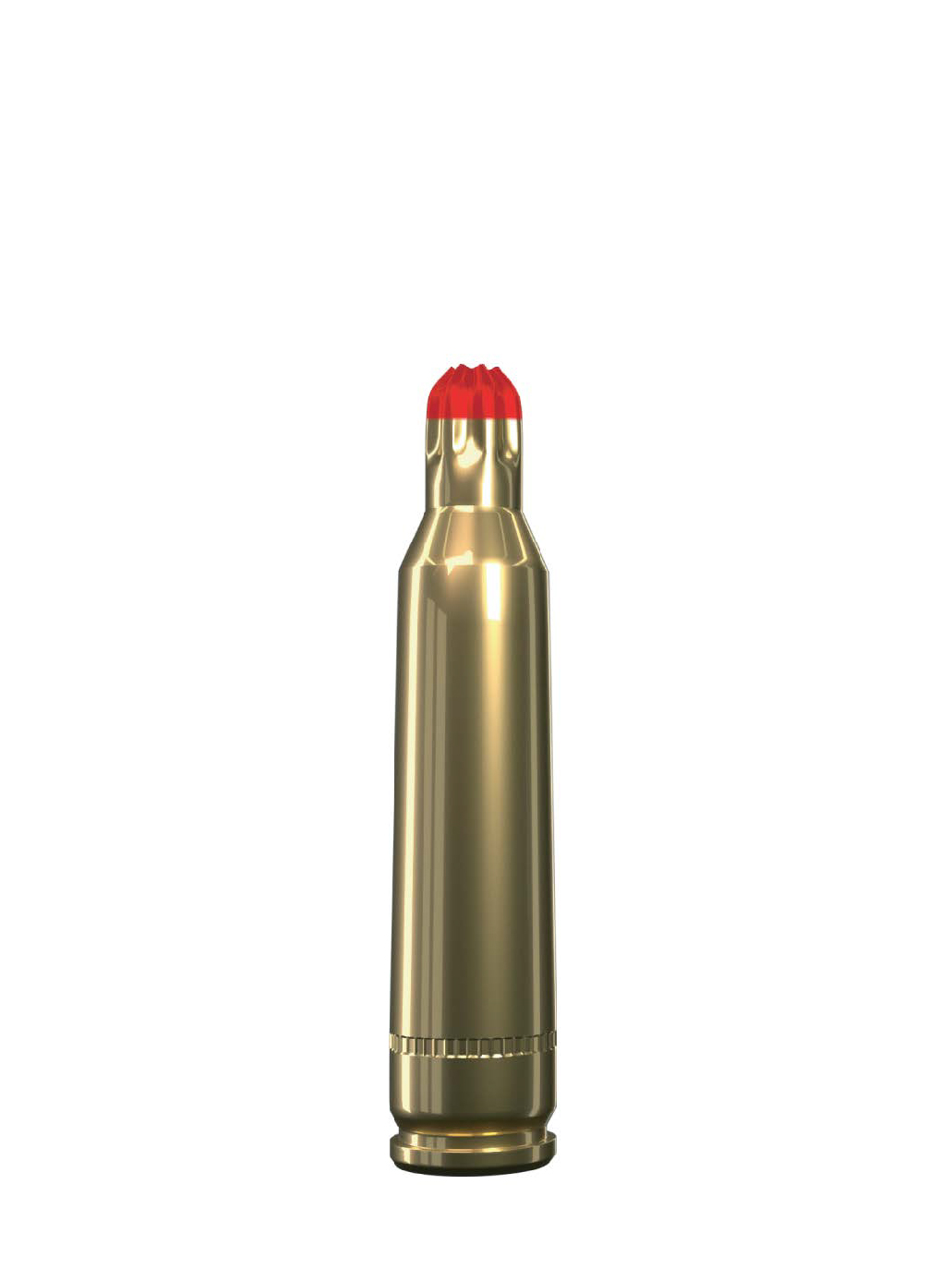

M200 BLANK
M200A1 BLANK

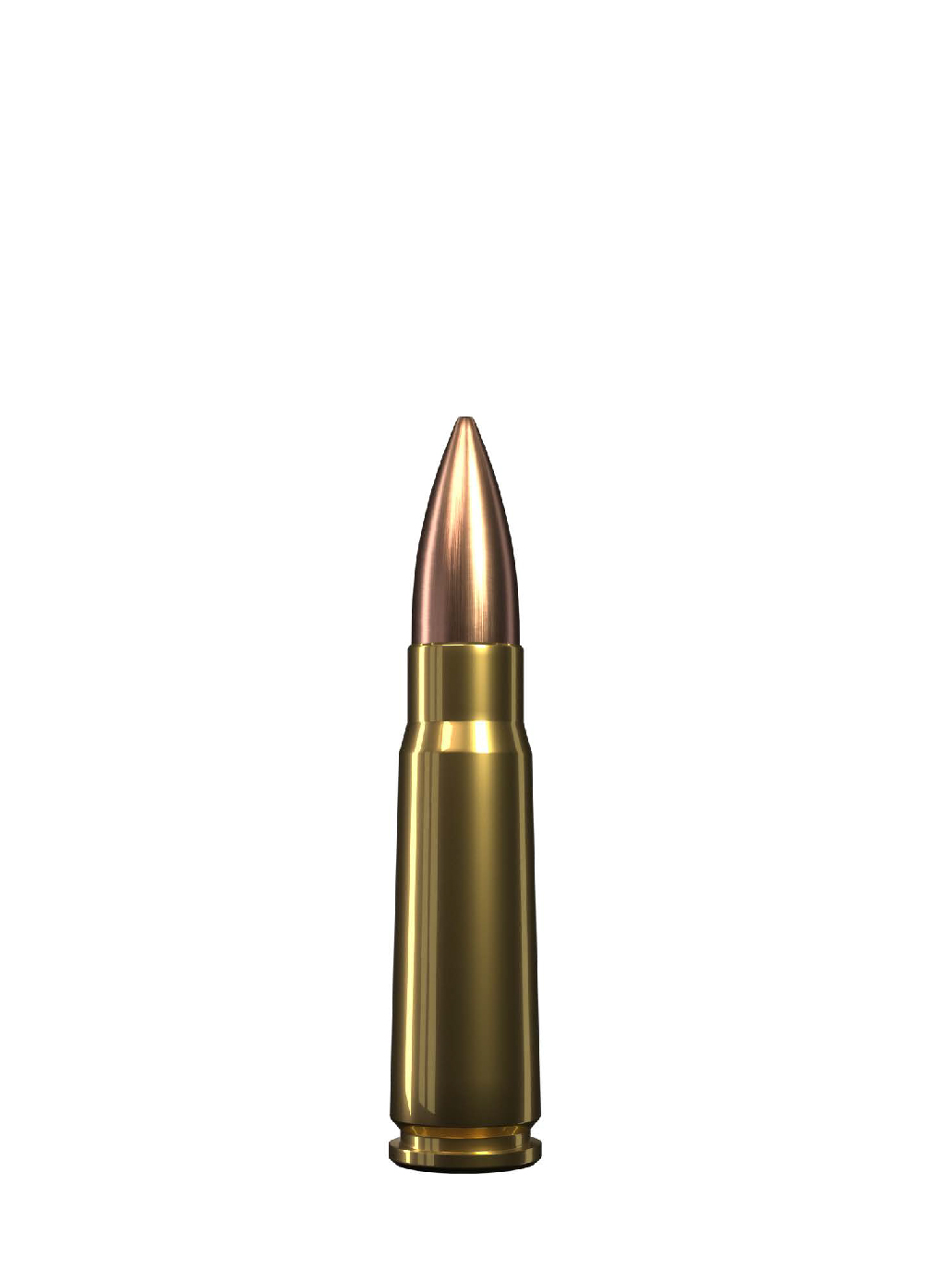

M67 Ball, M78 Tracer, API, AP
M68 BLANK
Ignition Charge for Rifle Grenade

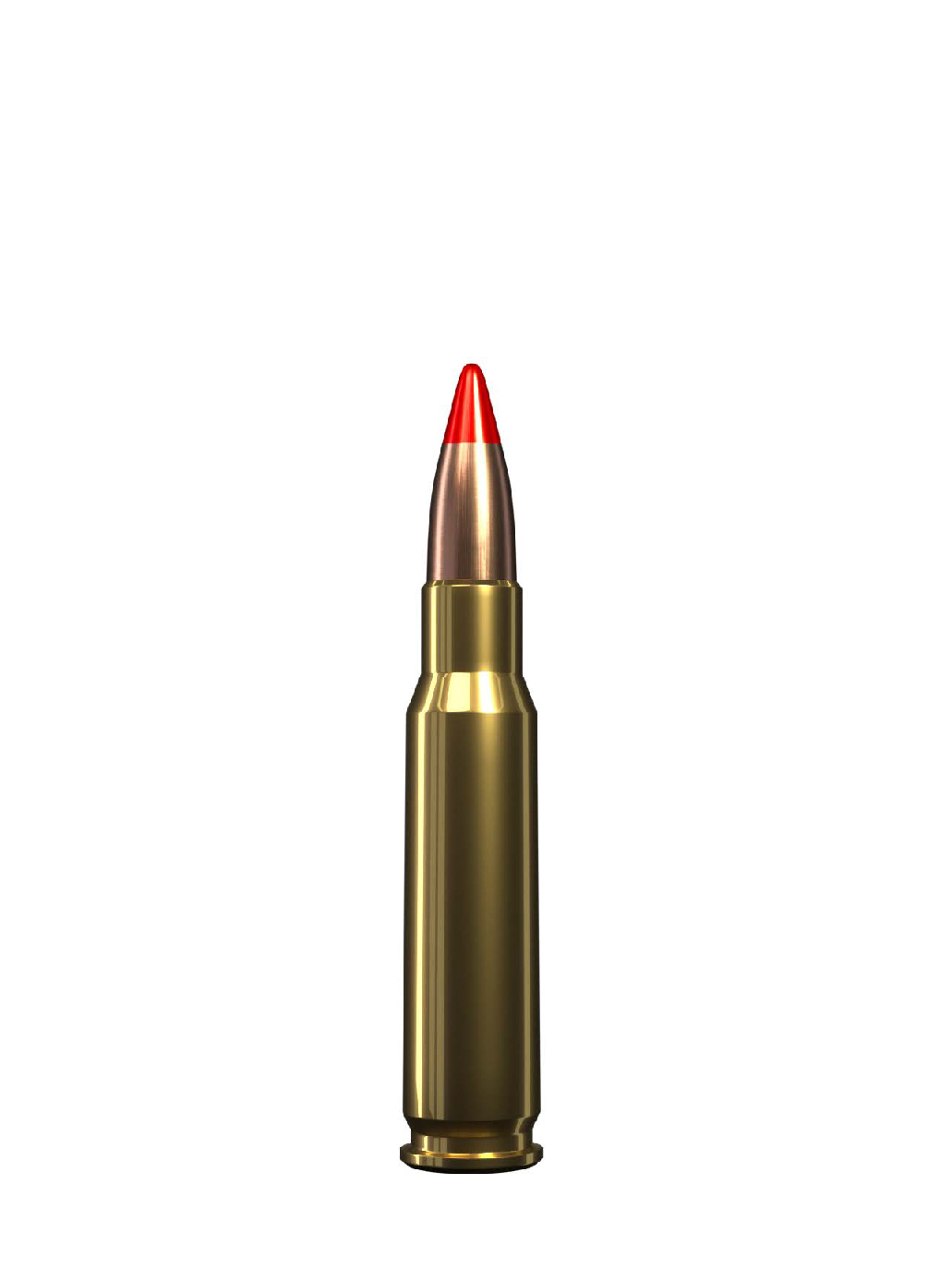

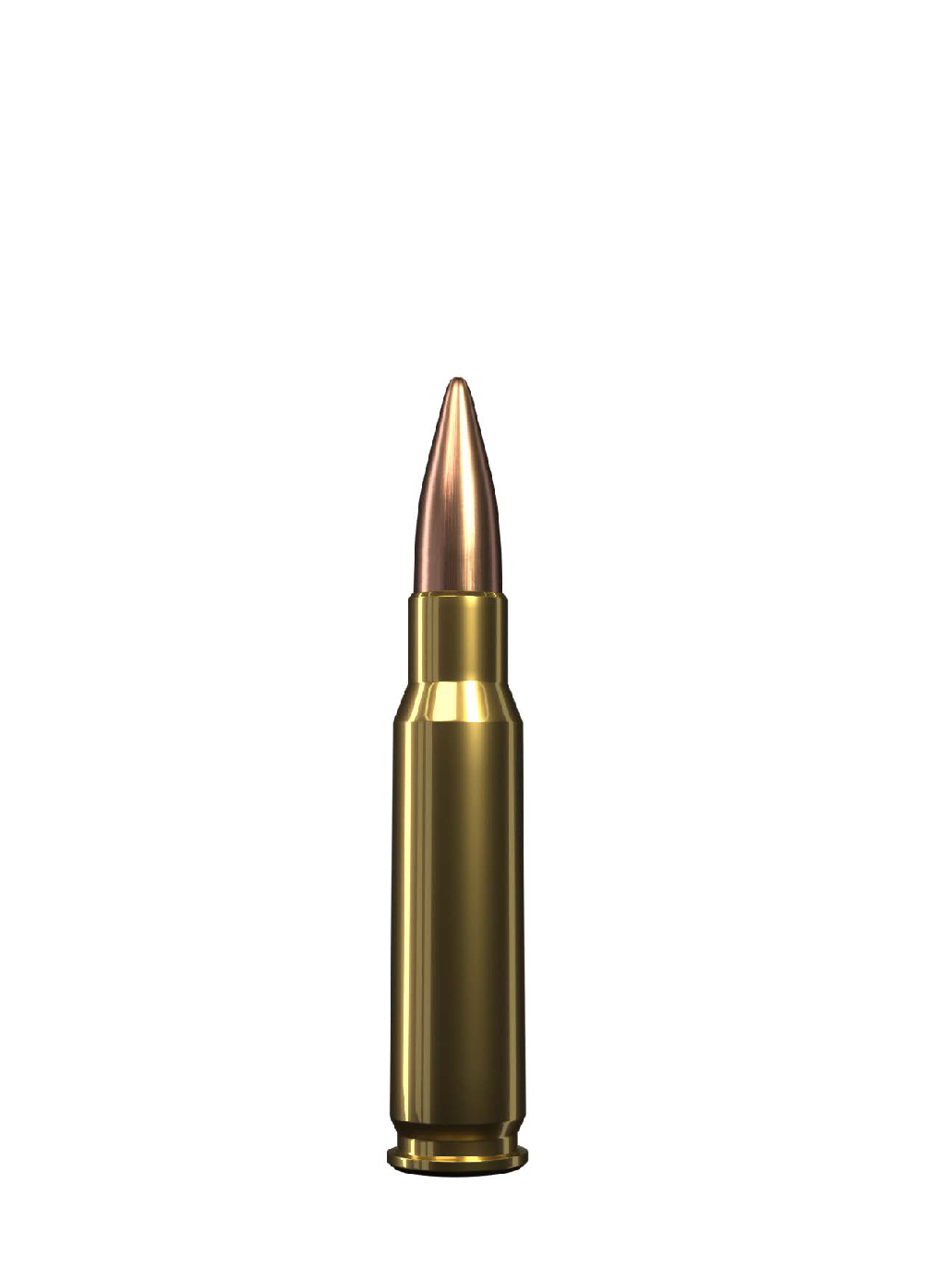

M80 Ball, M62 Tracer, M61 AP
API, APT
SNIPER BULLET FMJBT (10,9 g; 11,7 g) and HPBT (10,9g; 11,3g)
M82 BLANK
M30 Ball, M87 Tracer, M90 API
SNIPER
BLANK
M2 Ball, M25 Tracer
M1909 BLANK
M49 Ball, M70 Tracer
M33 Ball, M17 Tracer,M8 API, M20 APIT, M2 AP
M33 SNIPER
SPECIAL BULLETS Solid Ball, Solid AP, Solid API
M1A1 BLANK

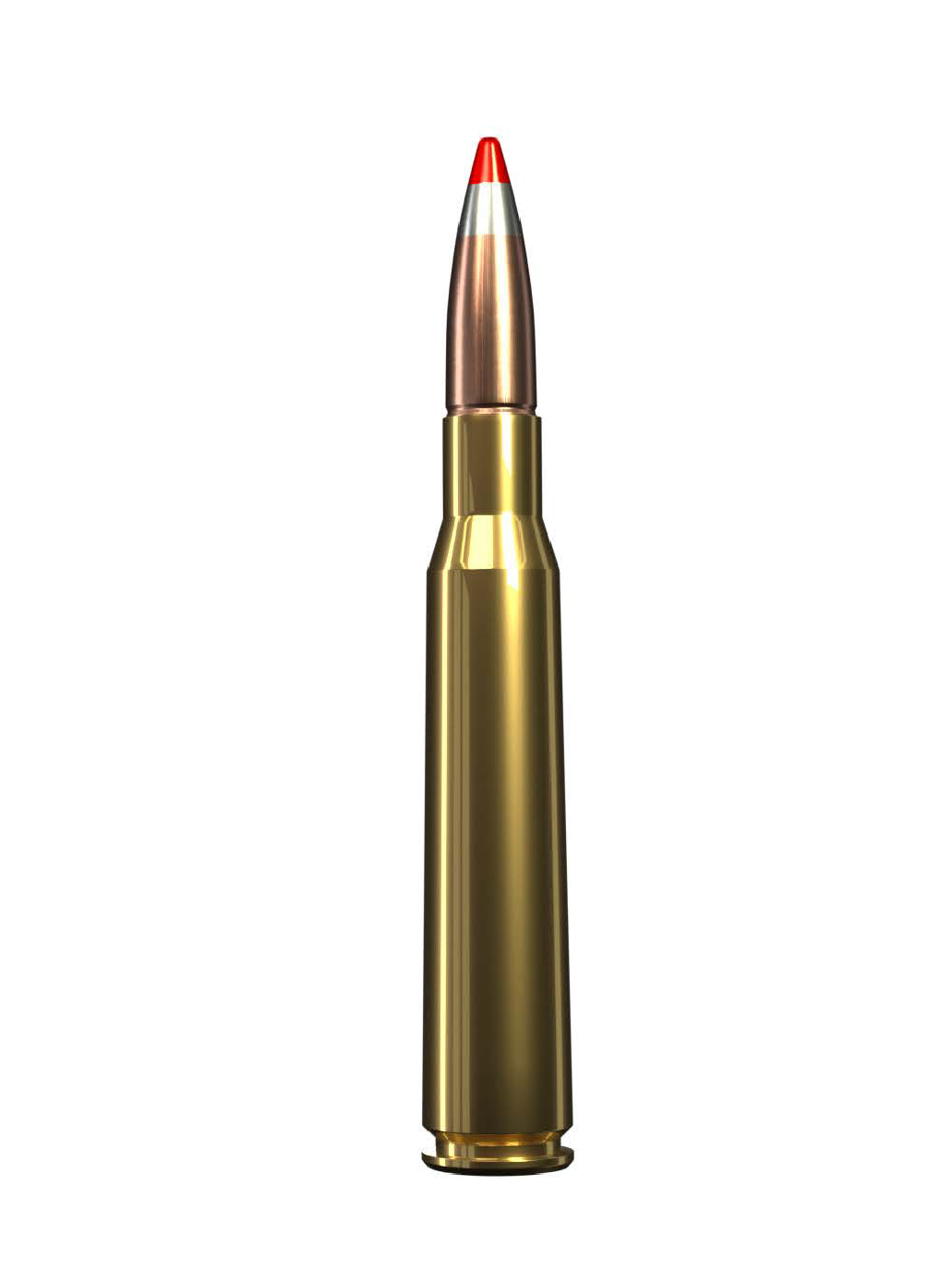

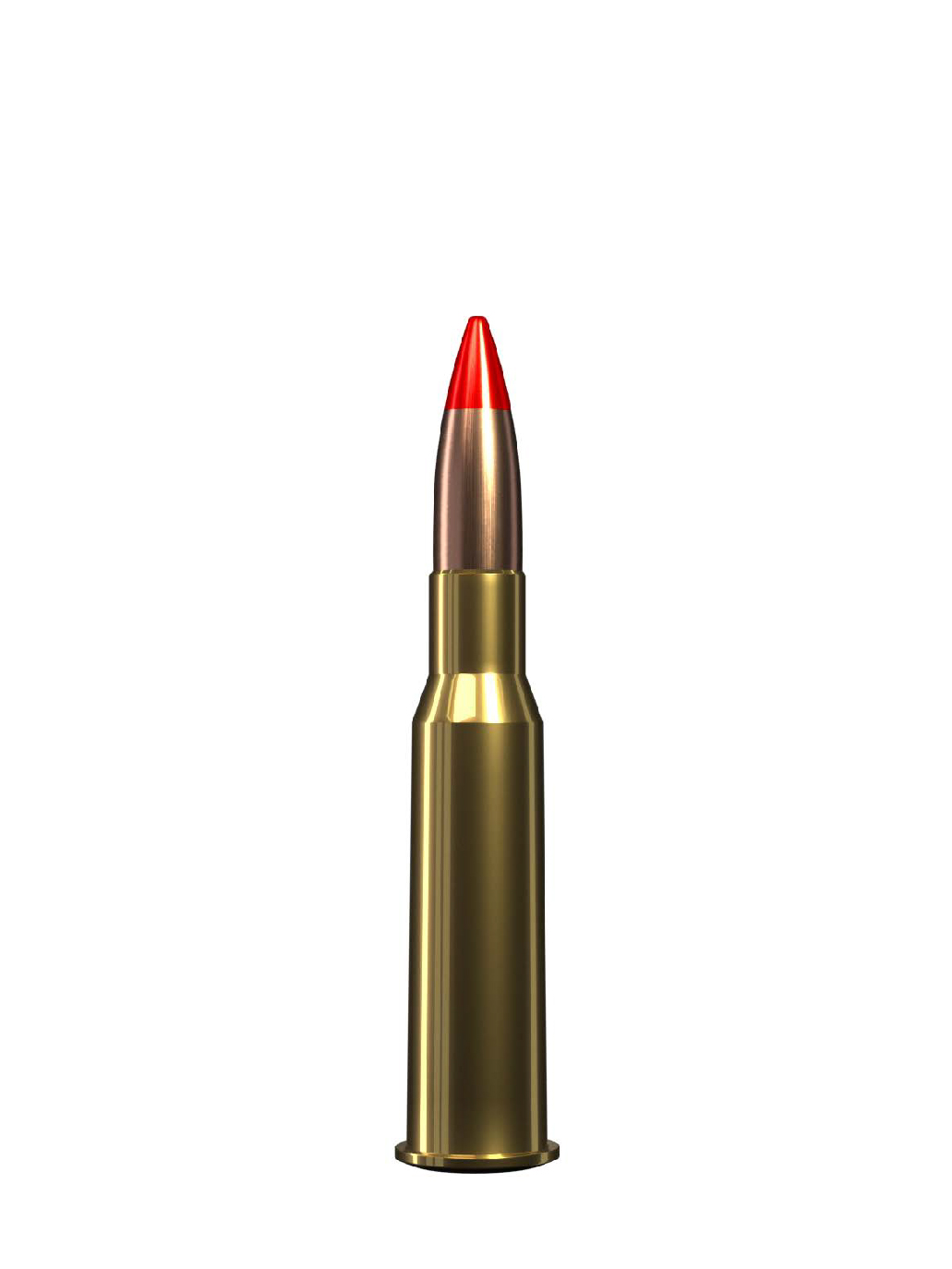

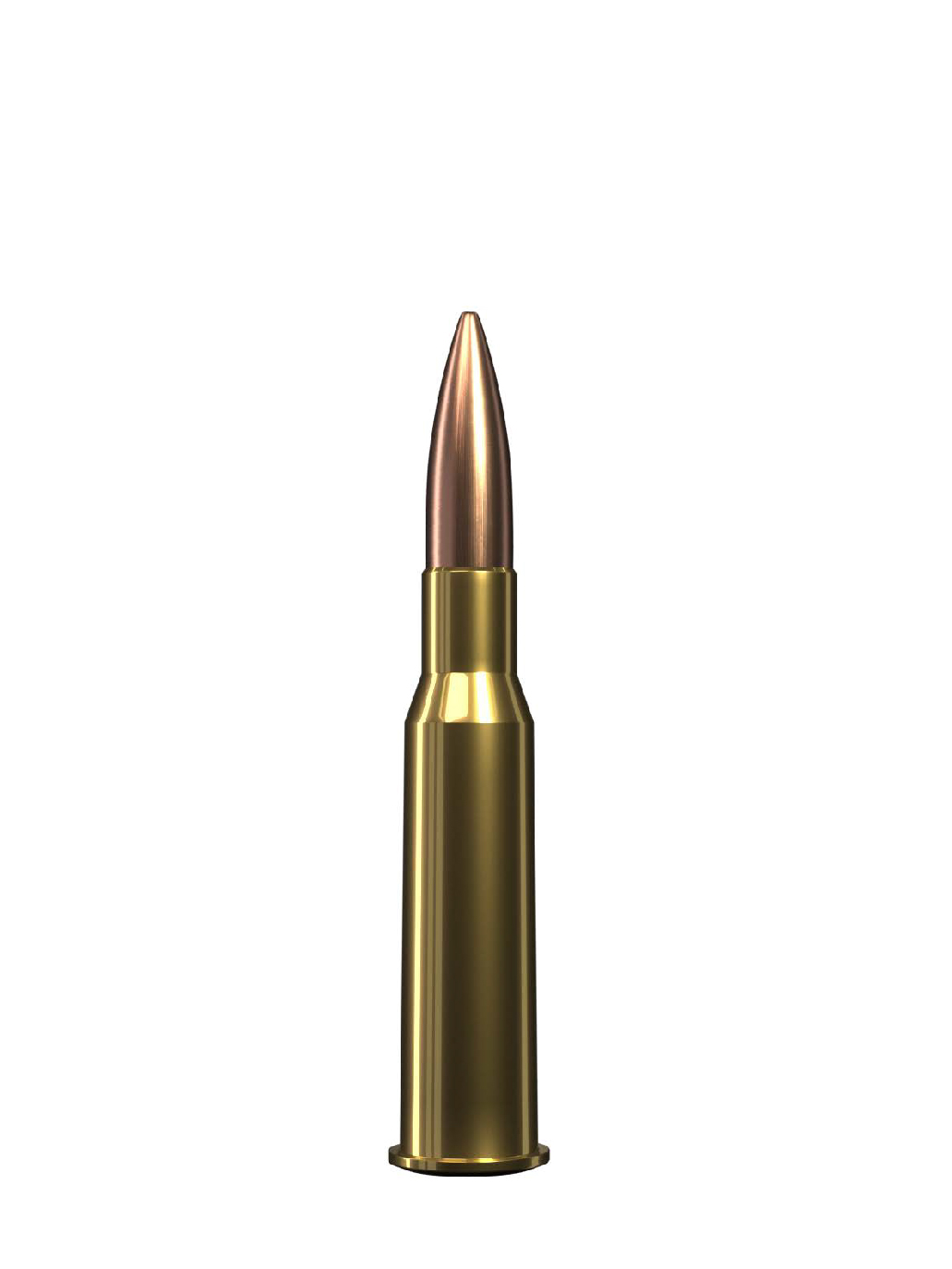

B32 API, BZT44 APIT, Ball, AP, Tracer
SNIPER

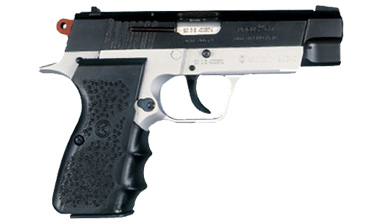

The ARCUS-98DAC is a DA/SA semi-automatic pistol with advanced ergonomic design and compact dimensions. The pistol features increased safety due to the combination of manual safety and automatic safety of the firing pin.
| Caliber: | 9 x 19 mm (9 mm Parabellum) |
| Action: | Double / Single Action |
| Capacity: | 13 rounds (optional 10 rounds) |
| Barrel length: | 101.5 mm (4.00 “) |
| Overall length: | 186 mm (7.32 “) |
| Height: | 130 mm (5.12 “) |
| Weight: | 900 g (31,7 oz) |
| Muzzle velocity | Not less than 340 m/s |
| Trigger pull range: | DA – less than 75 N (16.87 lbs.) SA – less than 30 N (6.75 lbs.) |
| Finish: | Blue or Duo-tone |
| Kulp -ları: | Lastikli ergonomik, Siyah plastik veya Ceviz |
| Emniyet: | Sağ Başparmak Manuel Güvenlik,Yarım Musluk Güvenliği,Otomatik Ateşleme Pimi Güvenliği,Dergi Bağlantı Kesme |
| Sights: | Üç Noktalı Savaş Stili düzeltildi |
| Komple takım: | 2 şarjör, bir temizleme çubuğu ve bir tabanca kilidi |

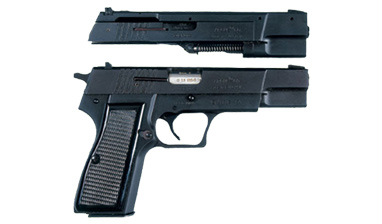

The Adapter ARCUS 98M is intended for replacing the slide and barrel of ARCUS 98DA 9mm semi-automatic pistol. The Adapter fires the considerably cheaper and widely used cartridge cal. .22LR.
Caliber | .22 LR |
Weight, kg | 0.450 |
Magazine capacity, cartridges | 8 |
Effective range, m | 50 |

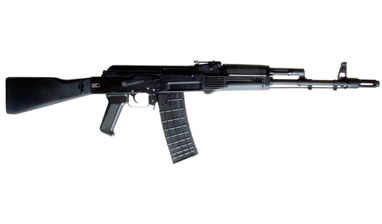

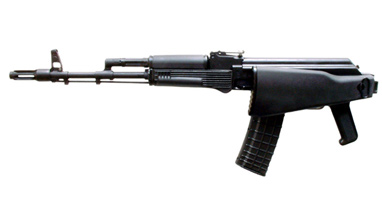

The assault rifles 5.56 mm AR-M7F belong to the firearms whose action is based on the principle of conveying a part of the powder gases through a special port in the wall of the stationary barrel and their influence onto the bolt carrier.The receiver is made of hot die forged solid blank followed by milling operations.The barrel chamber is closed by turn of the bolt, engaging the bolt lugs in the receiver.The weapon is fed from a 30-round arcuated staggered magazine, manufactured from glass fiber reinforced polycaproamide.The sight consists of sectors marked for shooting at a distance of up to 800 m.
The trigger mechanism has a hammer, which is activated by a firing spring. This mechanism has a safety device for setting from single to automatic fire mode, as well as contrariwise. The safety device simultaneously serves as well as a safety lever preventing accidental shots. It is located on the right hand side of the receiver and is formed as a long pivoted lever.
When set in the utmost upper position the trigger is blocked. In this position the safety serves two other functions:
– prevents contaminating of the receiver through the bolt carrier handle slot in the receiver cover;
– prevents from reloading the barrel chamber.
The butt, lower hand guard, the upper hand guard, the butt and the pistol grip are made from glass fiber reinforced polycaproamide.The butt of AR-M7F is side folding.Each Weapon is equipped with rail for sighting devices.The Assault Rifles design allows the attachment of 40×46 mm ARSENAL UBGL-M6 , UBGL-M8 or 40mm ARSENAL UBGL-1 or GP-25 KASTYOR Underbarrel Grenade Launchers, and firing with them.Each Weapon is equipped with rail for night or optical sight.
|
Calibre, mm |
5,56 |
|
|
Cartridge, mm |
5,56 x 45 |
|
|
Fire mode single and automatic |
||
|
Rate of fire, rounds/min |
600 |
|
|
Practical rate
|
up to 100 up to 40 |
|
|
Muzzle velocity, m/s -bullet type |
910 |
|
|
Sighting range, m |
up to 800 |
|
|
Max. firing range, m |
1 350 |
|
|
Effective firing range, m |
500 |
|
|
Magazine capacity, rounds |
30 |
|
|
Barrel length, mm |
415 |
|
|
Sight radius, mm |
370 |
|
|
Overall length with extended butt, mm |
965 |
|
|
Overall length with folded butt in traveling position, mm |
720 |
|
|
Weight without magazine, kg |
3.84 |
|
|
Weight of loaded magazine, kg 0.61 |
||
|
System life, rounds |
15 000 |
|
|
Principle of function |
gas operated automatic rifle |
|
|
Cleaning rod |
Oil can |
|
Cleaning rod extension |
Magazine 4 pcs |
|
Sling |
Bag |
|
Box with accessories(brush, drift, slush brush, screwdriver) |
|
Number of assault rifles in one wooden case, pcs |
10 |
|
Case dimensions, mm |
1 380 x 530 x 387 |
|
Weight of the wooden case, kg |
86 |
|
Volume of the wooden case, m3 |
0.27 |
Calibre, mm | 7.62 |
Cartridge, mm | 7.62×39 |
Fire mode | single and automatic |
Rate of fire, rounds/min | 600 |
Practical rate , round/min |
|
Muzzle velocity, m/s | 710 |
Sighting range, m | up to 800 |
Max firing range, m | 1350 |
Effective firing range, m | 400 |
Magazine capacity, pcs | 30 |
Barrel length, mm | 415 |
Sight radius, rounds | 378 |
Overall length, mm | 945 |
Overall length with folded butt, mm | 690 |
Weight, kg: |
|
Principle of function | gas operated automatic rifle |
System life, rounds | 15 000 |
Cleaning rod | Magazine 4 pcs |
Sling | Bag |
Box with accessories (brush, drift, scourer, screwdriver) | Oil can |
Case dimensions, mm | 1380 X 530 X 387 |
Weight of the wooden case, kg | 102 |
Volume of case, m3 | 0.27 |
